GYRON FS ARRI 435 SPECIFICATIONS
Click here to download PDF

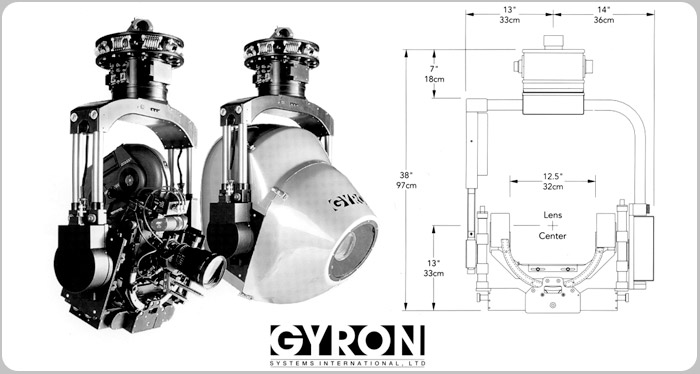

GYRON FS PERFORMANCE, DIMENSIONS AND WEIGHTS
Rotation: 360 Degrees Continuous
Tilt Range: 120 Degrees
Stabilized Roll Range: +/- 50 Degrees Or Automatic Level Horizon, Selectable
Power Requirements: 24 To 28 VDC, 3 Amps Standby, 15 Amps Dynamic Max
Maximum Camera Weight: 90 Pounds / 41 Kilos
System Weight: 128 Pounds / 58 Kilos (Less Covers and Isolator)
Back Pan: Automatic or Selectable
Target Tracking: Automatic or Selectable
Pan Speed: 120 Degrees / Second
Tilt Speed: 60 Degrees / Second
Roll Speed: 60 Degrees / Second
Lens Controls: System Is Wired To Accept All Popular Lens Controls

Gyron FS
